1x2x2.5 Power Cable + 9x1x2x1.0 Control Cable SWA PVC Sheathed Composite Cable

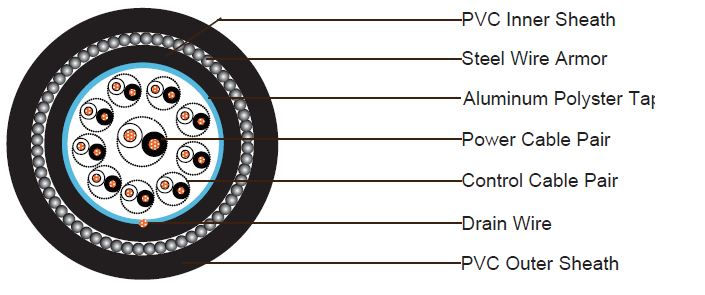

Construction:

1x2x2.5mm² Power Cable Conductor 2.5mm² annealed copper Insulation XLPE material. Insulation Color Black and white

9x1x2x1.0mm² Control Cable Conductor 1.0mm² annealed copper Insulation PE material. Insulation Color Black and white with pair number Overall Screen Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

Element Assembly Shield Aluminium polyester tape Drain Wire 24 AWG stranded tinned copper drain wire Bedding PVC Armour 1.6mm Steel wire armor. Sheath PVC sheath. Nominal outer diameter 31.0mm. Thickness 2.0mm Sheath Color Black Cable Weight 1415 kg/km

Electrical and Physical Properties @20°C:

Power Cable

Max. Conductor Resistance: 7.41Ohm/km at 20ºC

Control Cable

Max. Conductor Resistance: 18.5Ohm/km at 20ºC

Operating Temperature: -20°C/+90°C

Voltage Rating: 600/1000V
