1xRG59 + 2x1x2x22AWG Data Cable SWB LSZH Sheathed Composite Cable

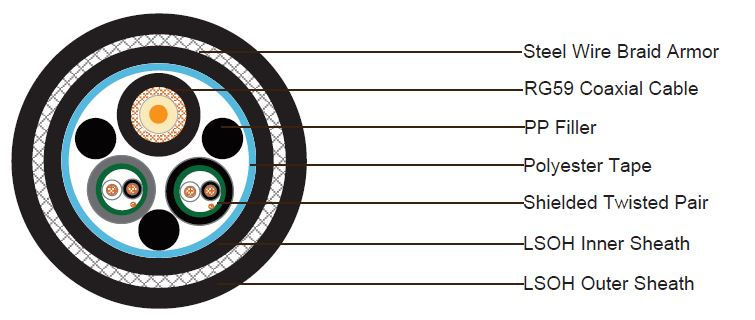

Construction:

1x75Ohm RG59 Coaxial Cable Conductor 0.58mm Solid copper conductor Insulation Polyethylene. Thickness 1.56mm Shield Braid of bare copper wire. Coverage ≥ 85% Sheath LSZH sheath. Nominal outer diameter 6.2mm Sheath Color Black

2 Pair 22AWG Data Cable Conductor 7/0.254mm Stranded tinned copper Insulation PVC material. Thickness 0.4mm Insulation Color Black and white Shield Aluminium polyester tape Drain Wire 7/0.2mm stranded tinned copper drain wire Sheath LSZH sheath. Nominal outer diameter 4.8mm. Sheath Color Black

Element Assembly Filler PP material (around coaxial cable) Wrapping Tape Polyester tape Inner Sheath Black LSZH, thickness 0.8mm Armor Steel wire braid, coverage 95% Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter is 18.5mm Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Nominal Attenuation: 8.2dB/100m @50MHz

Data Cable

Nominal Conductor Resistance @20°C: 48.4 Ohm/km

Fire Performance:

Flame Propagation: IEC60332

Low Smoke Capacity: IEC61034-1/2

Halogen Free: IEC60754-1/2
